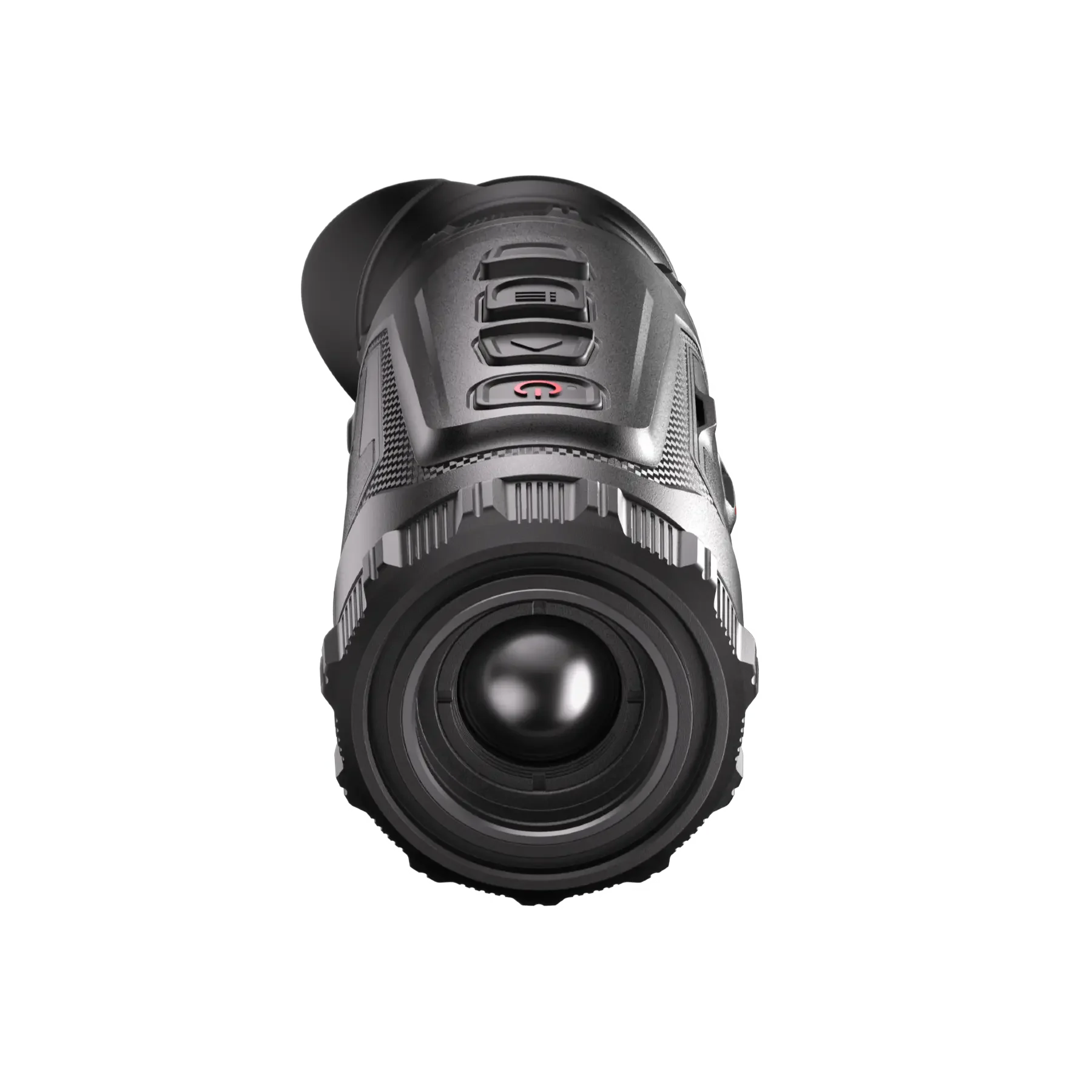

Hikmicro Lynx 3.0 LH19 Thermal Monocular
HIKMICRO Lynx 3.0 LH19 – 384px Sub 15mK 19mm Thermal Monocular
Compact, powerful, and designed for the toughest outdoor environments, the HIKMICRO Lynx 3.0 LH19 Thermal Monocular delivers premium performance in a pocket-sized form. With its 384×288 thermal sensor, Sub 15mK NETD sensitivity, and AI-powered image processing, the LH19 3.0 offers exceptional clarity, range, and reliability — making it an essential tool for hunters, wildlife observers, and outdoor professionals.
Advanced Thermal Imaging Performance
Built with a 384×288 VOx uncooled thermal sensor and a 12μm pixel pitch, the Lynx 3.0 LH19 captures subtle heat variations with remarkable accuracy. The NETD <15mK (@25°C, F#=1.0) sensitivity ensures sharp, high-contrast imaging even in fog, rain, or total darkness.
The 19mm F1.0 lens provides a detection range of up to 900 metres, giving you the ability to spot targets at long distances while maintaining a wide 13.8° field of view (24.2m @ 100m) — perfect for fast scanning in forest or open terrain.
Next-Generation AI Image Processing
Equipped with Image Pro 3.0 and Zoom Pro algorithms, the Lynx 3.0 automatically optimises contrast, brightness, and detail to produce consistently clear and realistic images. These advanced AI-driven technologies ensure a smooth, detailed thermal view at all zoom levels.
The HIKMICRO Shutterless Image System (HSIS) enhances image stability and eliminates the mechanical shutter, delivering silent and uninterrupted performance — perfect for stealth observation or field operations.
Vivid AMOLED Display
Experience brilliant image reproduction on the 0.49-inch 1920×1080 AMOLED display, which provides deep contrast, true blacks, and smooth rendering for precise visual feedback. Users can fine-tune contrast, brightness, and tone (cold or warm) for custom viewing comfort in any condition.
Choose from six colour palettes — White Hot, Black Hot, Red Hot, Fusion, Red Monochrome, and Green Monochrome — to adapt to your environment and target type.
Lightweight and Durable Design
Weighing just 331g and measuring 158mm in length, the LH19 3.0 is highly portable and designed for extended use in the field. Its IP67-rated housing offers full protection against dust and temporary water submersion, ensuring dependable operation in harsh outdoor conditions.
The ergonomic focus wheel and intuitive button layout make operation effortless, even while wearing gloves.
Extended Power and Connectivity
Powered by a replaceable and rechargeable 18650 battery, the Lynx 3.0 offers over 5 hours of continuous use (at 25°C, with Wi-Fi enabled), or 4.5 hours at -20°C. It also supports USB Type-C charging and external power sources for continuous operation during long observation sessions.
The built-in Wi-Fi hotspot (2.4/5GHz) connects seamlessly with the HIKMICRO Sight App, enabling live streaming, recording, and remote control from your smartphone or tablet.
Recording, Measurement, and Smart Features
The LH19 3.0 comes equipped with 64GB of internal storage, allowing users to capture photos, record video and audio, and review files directly on the device.
It also includes:
-
Hot Track mode to highlight the hottest object in view
-
Picture-in-Picture (PIP) for enhanced focus on your target
-
Distance Measurement for accurate range estimation
-
Standby Mode for quick power management
Key Specifications
| Feature | Specification |
|---|---|
| Sensor | 384×288 VOx uncooled detector, 12μm pixel pitch |
| NETD | <15mK (@25°C, F#=1.0) |
| Lens | 19mm F1.0 |
| Detection Range | Up to 900m |
| Display | 0.49" AMOLED, 1920×1080 |
| Magnification | 1.9× base, up to 15.2× digital |
| Field of View | 13.8° × 8.4° (24.2m × 14.7m @100m) |
| Storage | 64GB internal EMMC |
| Battery Life | 5h @25°C (Wi-Fi on) / 4.5h @-20°C |
| Weight | 331g (with battery) |
| Dimensions | 158.4 × 53.6 × 49.5mm |
| Protection | IP67 (dust and water resistant) |
The Ultimate Compact Thermal Companion
The HIKMICRO Lynx 3.0 LH19 is designed for users who demand power, precision, and portability. Its combination of AI-enhanced imaging, shutterless performance, and lightweight construction makes it one of the most capable and versatile thermal monoculars in its class.
Compact. Intelligent. Field-ready.
The HIKMICRO Lynx 3.0 LH19 delivers professional-grade thermal performance — wherever your adventure takes you.
