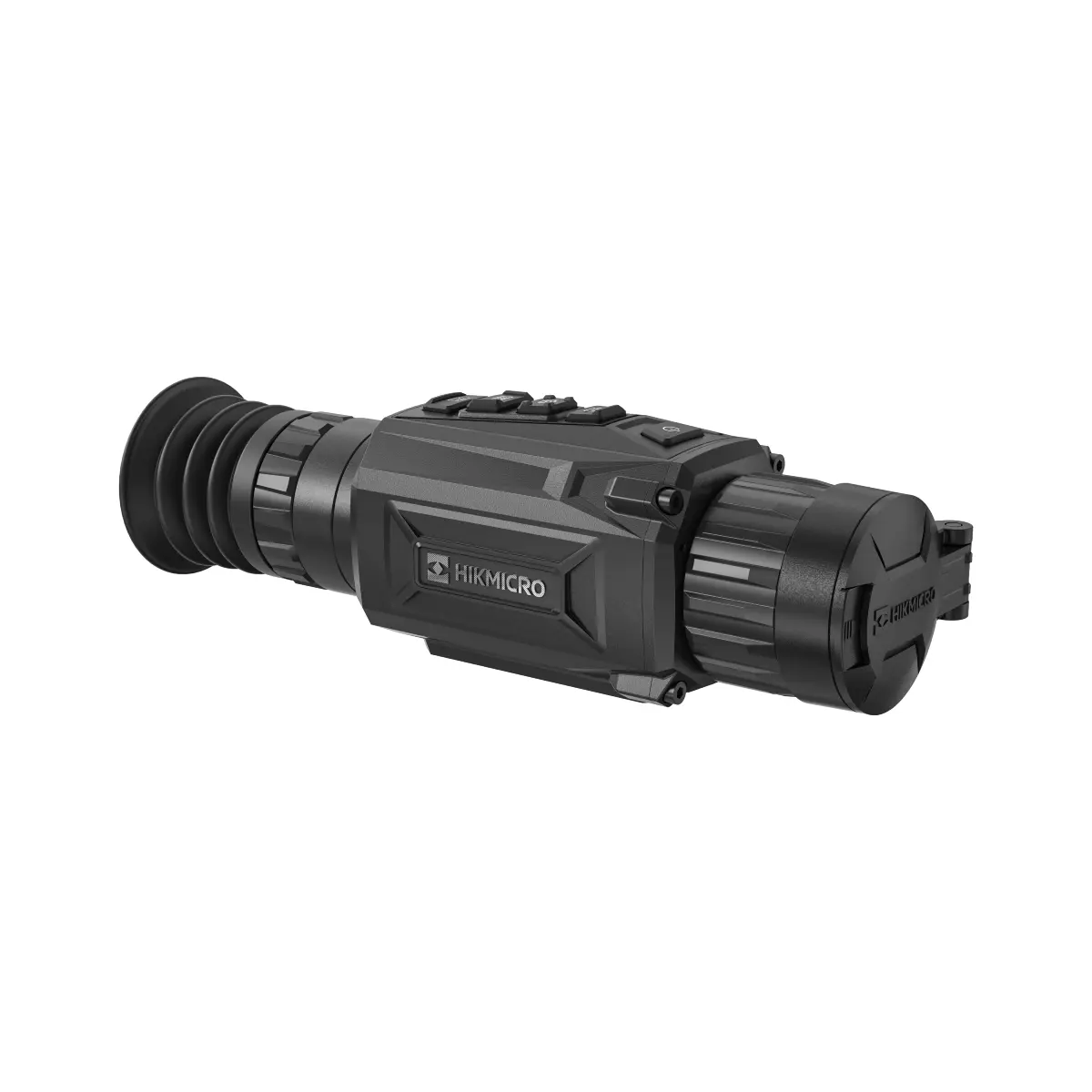

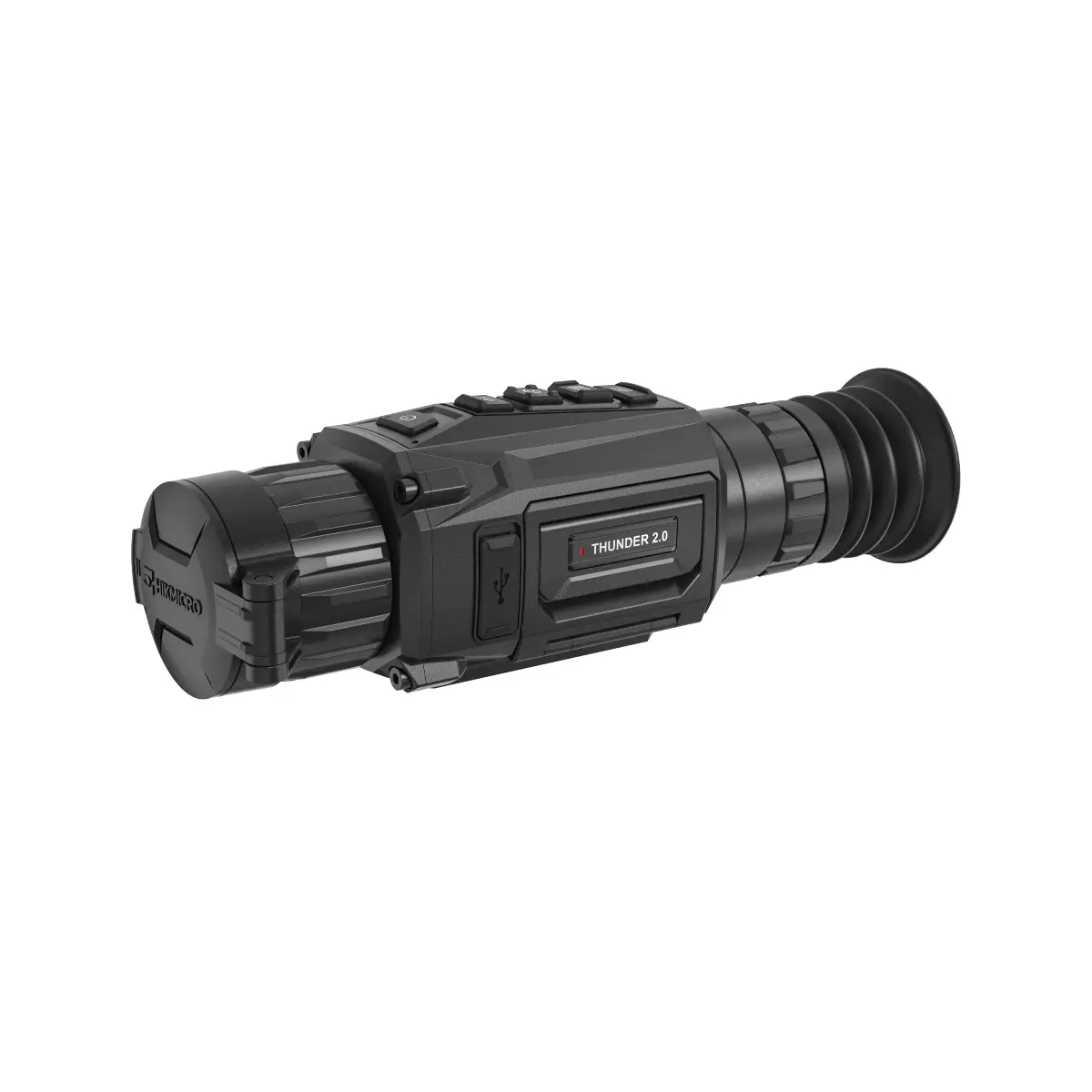

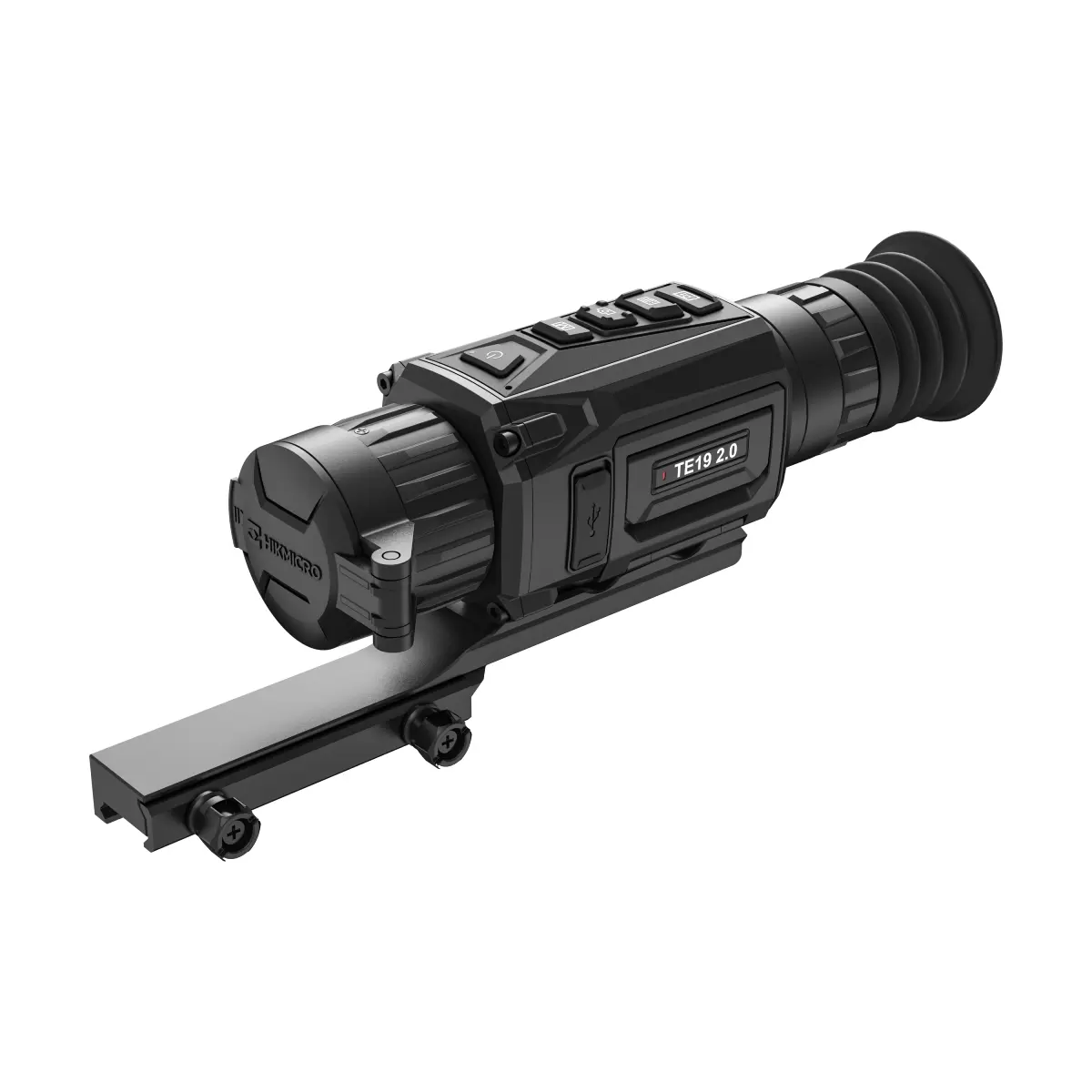

HIKMICRO Thunder TE19 2.0 Thermal Image Scope

Advanced Thermal Imaging Performance for Hunters, Search Teams & Outdoor Professionals

The HIKMICRO Thunder TE19 2.0 Thermal Image Scope delivers powerful performance in any lighting or weather condition. Equipped with a 256 × 192 thermal detector and a high-definition 1024 × 768 OLED display, it reveals hidden heat signatures through fog, smoke, dust, rain, snow, and total darkness. Perfect for hunting, search and rescue, hiking, and surveillance, the TE19 2.0 combines precision imaging, robust construction, and long-lasting power in a compact, high-tech package.

Key Features

High-Performance Thermal Imaging

• 256 × 192 resolution uncooled sensor with 12 μm pixel pitch

• < 35 mK NETD for exceptional image clarity and contrast

• Wide detection range up to 1000 metres

Crisp Visual Experience

• 0.39” OLED display with 1024 × 768 resolution

• Adjustable brightness and tone (Cold/Warm modes)

• Four colour palettes: Black Hot, White Hot, Red Hot, Fusion

Rugged, Reliable, and Ready for Action

• IP67 waterproof and dustproof rating

• Shock resistance up to 1000 g / 0.4 ms

• Operates in temperatures from -30°C to +55°C

Smart Recording & Connectivity

• Built-in video and audio recording with recoil-activated capture

• Hotspot connectivity and picture-in-picture (PIP) support

• 16 GB internal storage for saving footage

• USB Type-C charging and external power compatibility

Extended Power for Field Use

• Replaceable and rechargeable Li-ion battery

• Up to 10 hours of continuous operation

Technical Specifications

Thermal Module

• Sensor Type: Uncooled Focal Plane Arrays

• Resolution: 256 × 192

• Frame Rate: 50 Hz

• Pixel Interval: 12 μm

• NETD: < 35 mK (25°C, F# = 1.0)

• Lens: 19 mm (F1.0)

• Detection Range: 1000 m

• Magnification: 2.47×

• Field of View: 9.24° × 6.94° / 16.17 m × 12.13 m @ 100 m

• Min. Focusing Distance: 0.5 m

Display & Imaging

• Display: 0.39" OLED, 1024 × 768

• Palettes: Black Hot, White Hot, Red Hot, Fusion

• FFC Modes: Auto / Manual / External

• Eye Relief: 45 mm

• Diopter Adjustment: -5D to +5D

• Brightness & Tone Control: Yes

System & Recording

• Video Recording: On-board with audio

• Recoil-Activated Recording: Yes

• Snapshots: Yes

• Digital Zoom: 1× / 2× / 4× / 8×

• Storage: 16 GB built-in EMMC

• Hotspot, PIP, Hot Track, DPC, Distance Measurement: Supported

Power & Battery

• Battery Type: Replaceable Li-ion

• Operating Time: ≥ 10 hours (25°C, hotspot off)

• Power Input: Type-C 5 VDC, 2 A

General

• Protection Level: IP67

• Dimensions: 218.7 × 67.14 × 68.04 mm

• Weight: 476 g (without battery)

• Operating Temperature: -30°C to +55°C

Built for the Demands of the Outdoors

The HIKMICRO Thunder TE19 2.0 is engineered for precision, endurance, and adaptability. Whether you’re tracking wildlife in total darkness or scanning landscapes for search and rescue, this thermal scope provides unmatched clarity and reliability — even in extreme environments.
