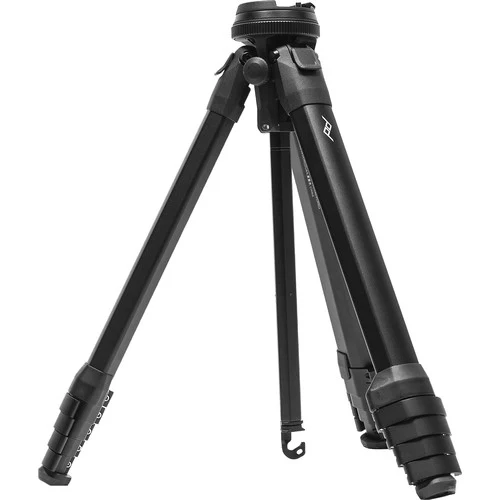

Peak Design Travel Tripod - Aluminium: Redefining Portability and Performance

For decades, traditional tripods have been burdened by unnecessary bulk and inefficient use of space. At Peak Design, we spent 4 years reimagining the tripod from the ground up, creating the ultimate travel tripod that condenses to the diameter of a water bottle, all without sacrificing height, stability, or functionality.

Designed for Speed and Convenience

Setup and takedown are lightning-fast with our tripod’s intuitive, ergonomic adjustment points and integrated mobile compatibility. Every detail is carefully considered for seamless use. This durable, road-ready tripod is 100% serviceable and backed by Peak Design’s lifetime guarantee, making it a reliable companion for your adventures.

What’s Included:

• Travel Tripod (legs and Compact Ball Head)
• Protective weatherproof soft case
• ARCA-compatible Standard Plate
• Built-in mobile mount
• Hex tool with carry clip
• Bushing removal tool for easy maintenance

Pro-Level Performance in a Compact Design

The Peak Design Travel Tripod delivers professional-grade stability and load capacity in a space-saving form. Packing down to the size of a water bottle, it sets a new standard for portable tripods. The result of 4 years of meticulous engineering, this tripod is your go-to for every photography adventure.

Revolutionary Architecture

The space-efficient design eliminates any wasted volume when collapsed, with no protruding knobs. It packs down to a slim diameter, making it ideal for photographers on the move.

Quick Deployment

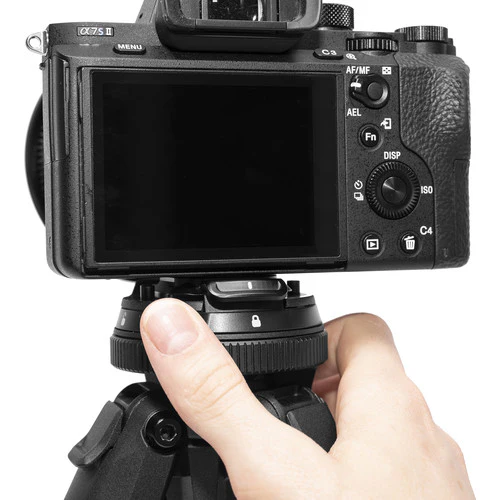

The tripod’s unique design enables rapid setup and takedown, with fast-locking, low-profile leg cams. The legs deploy in seconds, without the need to flip them over like traditional tripods. Its secure, ergonomic camera quick-release system ensures swift operation when you need it most.

Unmatched Stability & Features

• Supports up to 9.1kg (20 lbs), optimized for a full-frame DSLR with a telephoto lens
• Stability and vibration damping rival or exceed other tripods in its class

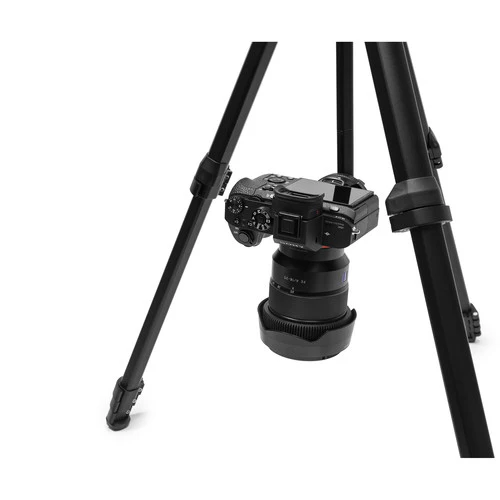

• Low and inverted modes allow for ground-level shooting
• Integrated load hook for added stability
• Anchor attachment points for use with Peak Design straps (sold separately)

Ergonomic Ball Head

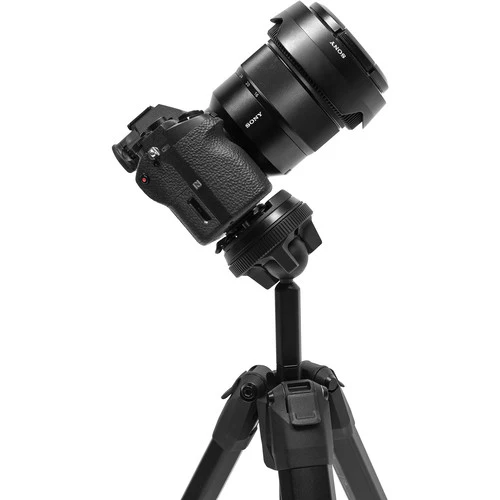

The ultra-smooth Compact Ball Head offers full 360° movement, controlled by a single adjustment ring—no bulky knobs. Compatible with all Peak Design plates and most third-party Arca-Swiss plates, it offers versatility for your gear.

Mobile Compatibility

A stowable mobile mount is built into the tripod, ready to securely hold any smartphone, making this tripod as versatile as your workflow.

Built to Last

Crafted with weather-resistant and impact-proof materials, every part of the tripod is designed to be serviceable, replaceable, and built to last. It includes a weatherproof padded case, ensuring your tripod is protected in all conditions. And like all Peak Design products, it's guaranteed for life.

Key Specifications:

Weight:

• Aluminium: 1.56 kg (3.44 lbs)
• Carbon Fibre: 1.29 kg (2.81 lbs)

Weight Capacity:

• 9.1 kg (20 lbs) – Optimized for professional setups (full-frame DSLR + telephoto lens)

Collapsed Dimensions:

• Length: 39.1 cm (15.4")
• Diameter: 7.9 cm (3.125")

Deployed Dimensions:

• Max Height (with center column raised): 152.4 cm (60")
• Max Height (without center column raised): 130.2 cm (51.25")
• Min Height (low mode): 14 cm (5.5")

Materials:

• Ball Head, Hub, Load Hook: Powder-coated A380 aluminium
• Legs: Anodised 6061-T6 aluminium (Aluminium model)
• Quick Release, Adjustment Ring, Center Column Knob: Anodised 6061-T6 aluminium
• Locking Ring: Polycarbonate/ABS blend
• Feet: ShoreA60 TPU

Included in the Box:

• Travel Tripod (Legs + Compact Ball Head)
• Weatherproof Soft Case
• Standard Plate
• 4mm + 2.5 Hex Wrench
• Mobile Mount
• Bushing Removal Tool

SKU/Part Number:

• TT-CB-5-150-AL-1 (Aluminium)
• TT-CB-5-150-CF-1 (Carbon Fibre)

This Peak Design Travel Tripod revolutionises on-the-go photography by combining professional performance with an ultra-portable design. Take your photography to the next level with Peak Design’s commitment to innovation and quality.
