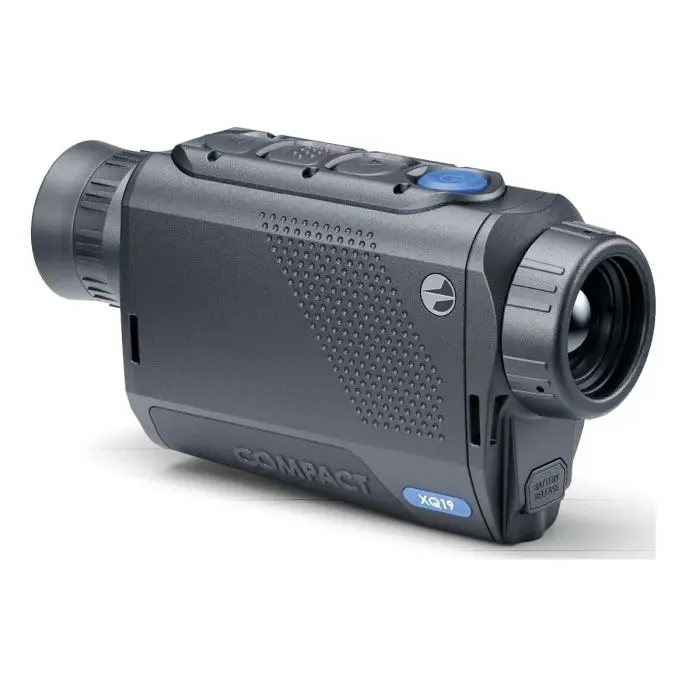

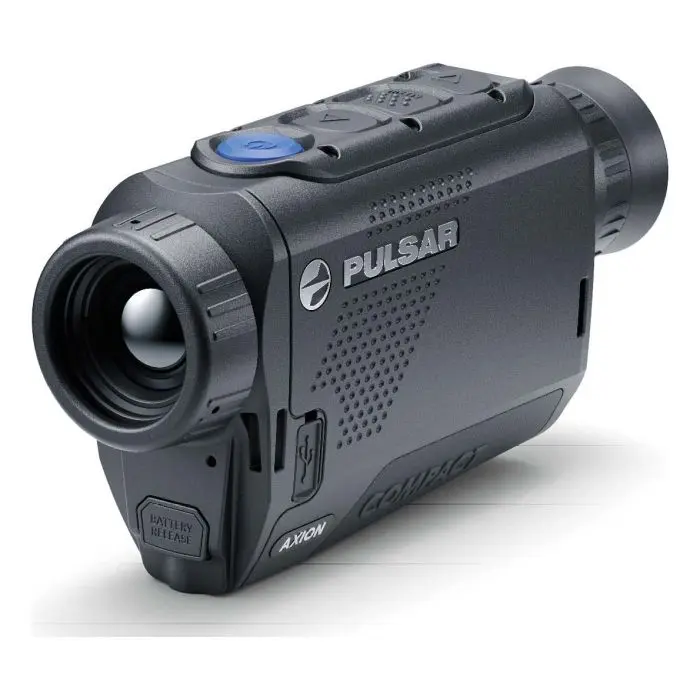

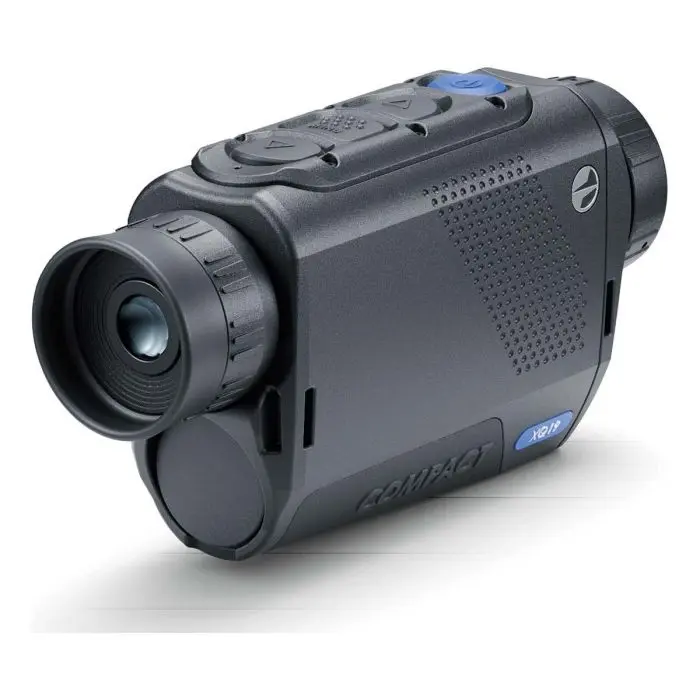

Pulsar Axion Compact XQ19 Thermal Imaging Monocular

Powerful Thermal Vision in a Pocket-Sized Design

The Pulsar Axion Compact XQ19 delivers premium thermal imaging in a lightweight, palm-sized body. Designed to make professional performance more accessible, it features a 384×288, 17µm <18mK NETD sensor and a 19mm f/1.0 lens, detecting heat sources up to 750 metres away — all from a device that fits easily in your hand or pocket.

Exceptional Thermal Performance

The highly sensitive <18mK NETD sensor captures fine temperature differences for clear, high-contrast imaging in fog, rain, or total darkness. Spot wildlife, track heat signatures, or monitor your surroundings with precision — whatever the weather.

Wide Field of View

With a 19° field of view (34.7 m @ 100 m), the Axion XQ19 provides wide-angle visibility for scanning open terrain and tracking moving subjects.

All-Day Power

Enjoy up to 8 hours of operation from the rechargeable APS3 battery. Quick-swap design makes changing batteries simple, even in the dark — perfect for extended field use.

Rugged & Weatherproof

The magnesium alloy body and IPX7 waterproof rating protect against rain, snow, and immersion. A rubberised grip ensures reliable handling in any conditions.

Custom Colour Palettes

Choose from eight viewing modes to enhance detection and reduce eye strain:

• White Hot / Black Hot / Red Hot – ideal for detection

• Rainbow / Ultramarine – improve recognition

• Red Monochrome / Sepia / Violet – comfortable for long use

Built-in Recording & App Connectivity

Capture photos and videos (with audio) directly on the device, then transfer or stream via the Stream Vision 2 app. Control settings remotely, download your footage, and update firmware over the air.

Key Specifications

Feature	Specification
Sensor Resolution	384×288 px
Pixel Pitch	17 µm
Sensitivity	<18 mK NETD
Lens	19 mm f/1.0
Magnification	1.5–6×
Detection Range	750 m
Field of View	19.5° / 34.7 m @ 100 m
Display	640×400 AMOLED
Battery	APS3 (3200 mAh, removable) – up to 8 hours
Protection Rating	IPX7
Operating Temp.	−25 °C to +40 °C
Weight	250 g

Why Choose the Axion Compact XQ19

• Professional-grade thermal imaging in a compact body

• Wide field of view and 750 m detection range

• Long battery life with quick-swap design

• Rugged, waterproof build for all-weather use

• Video recording and smartphone control
