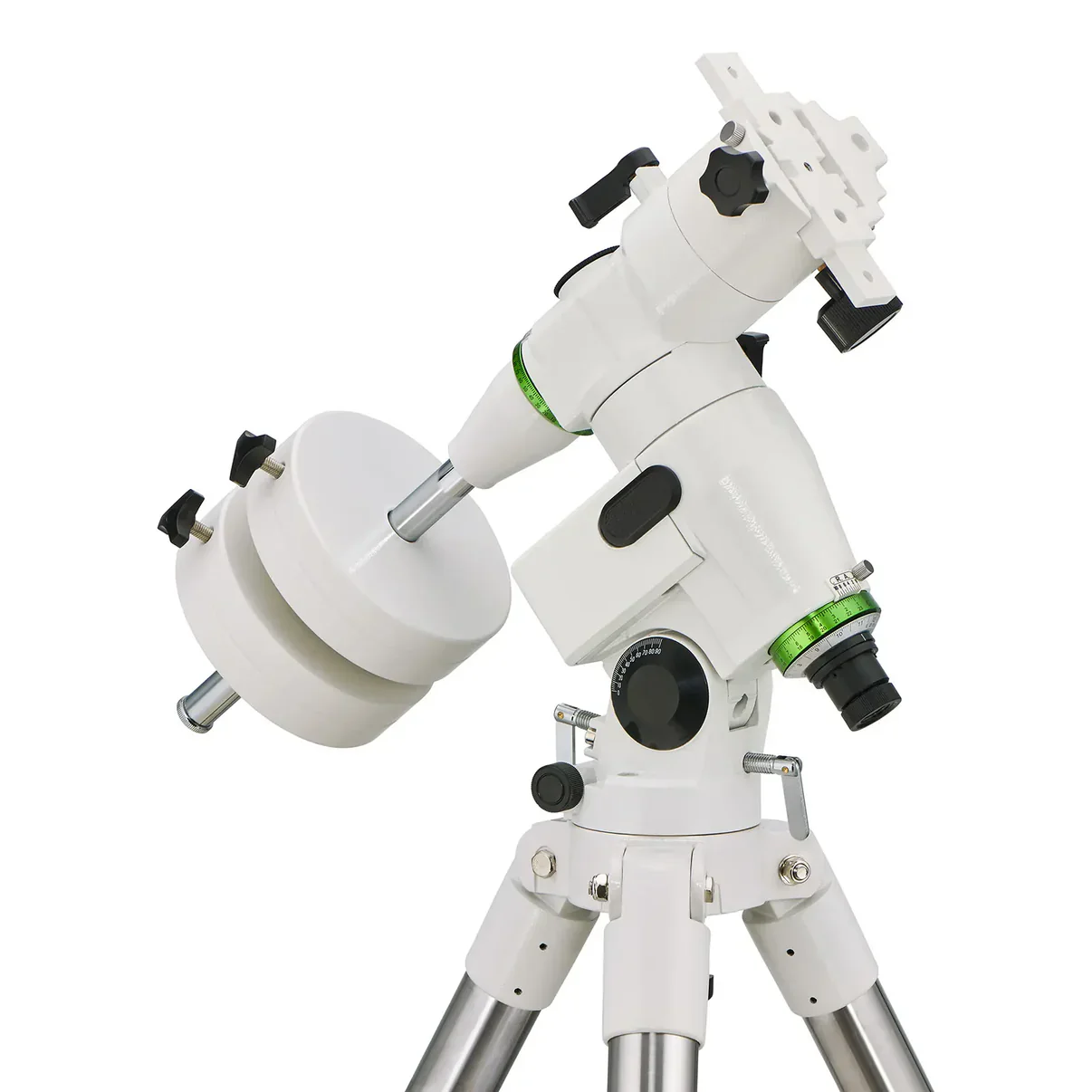

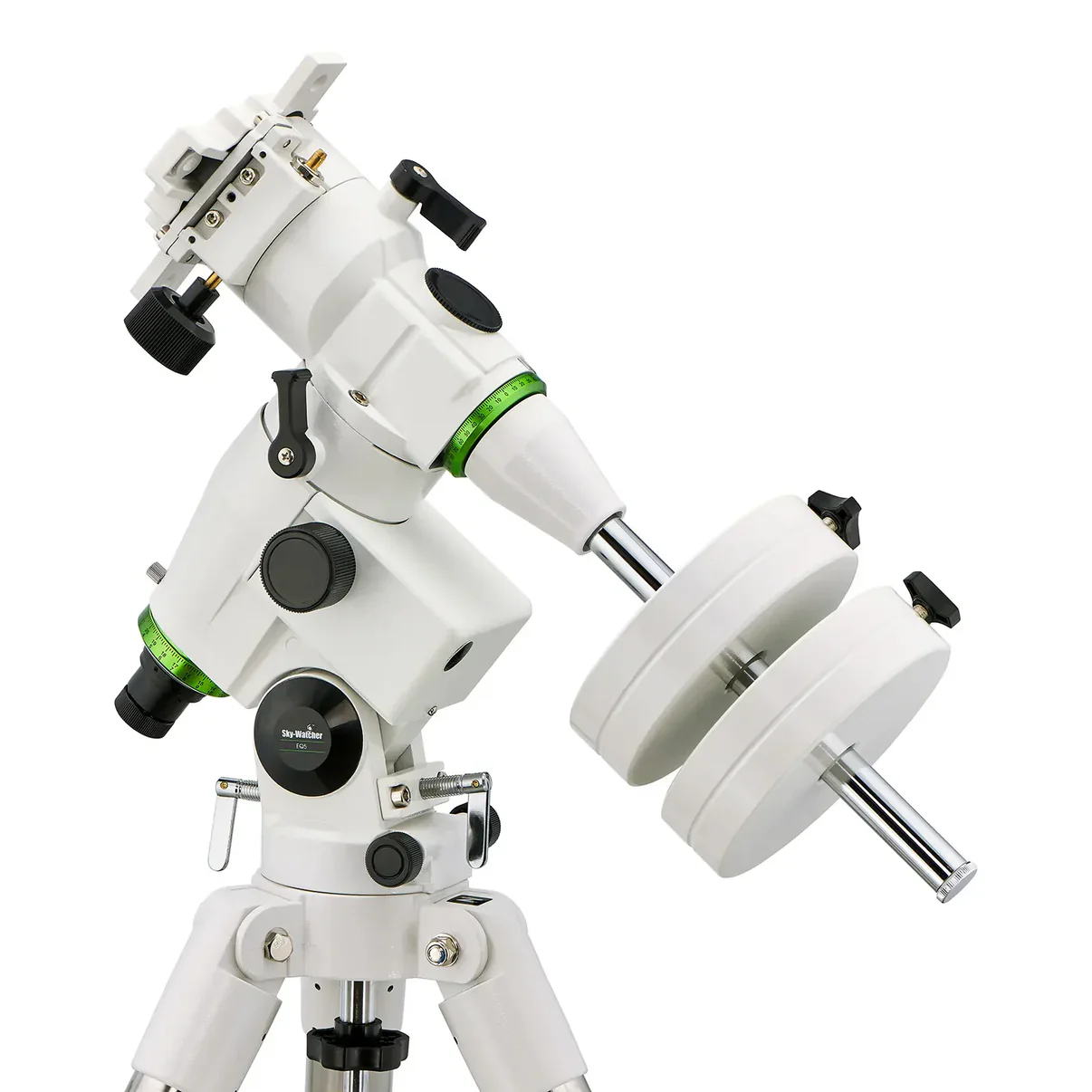

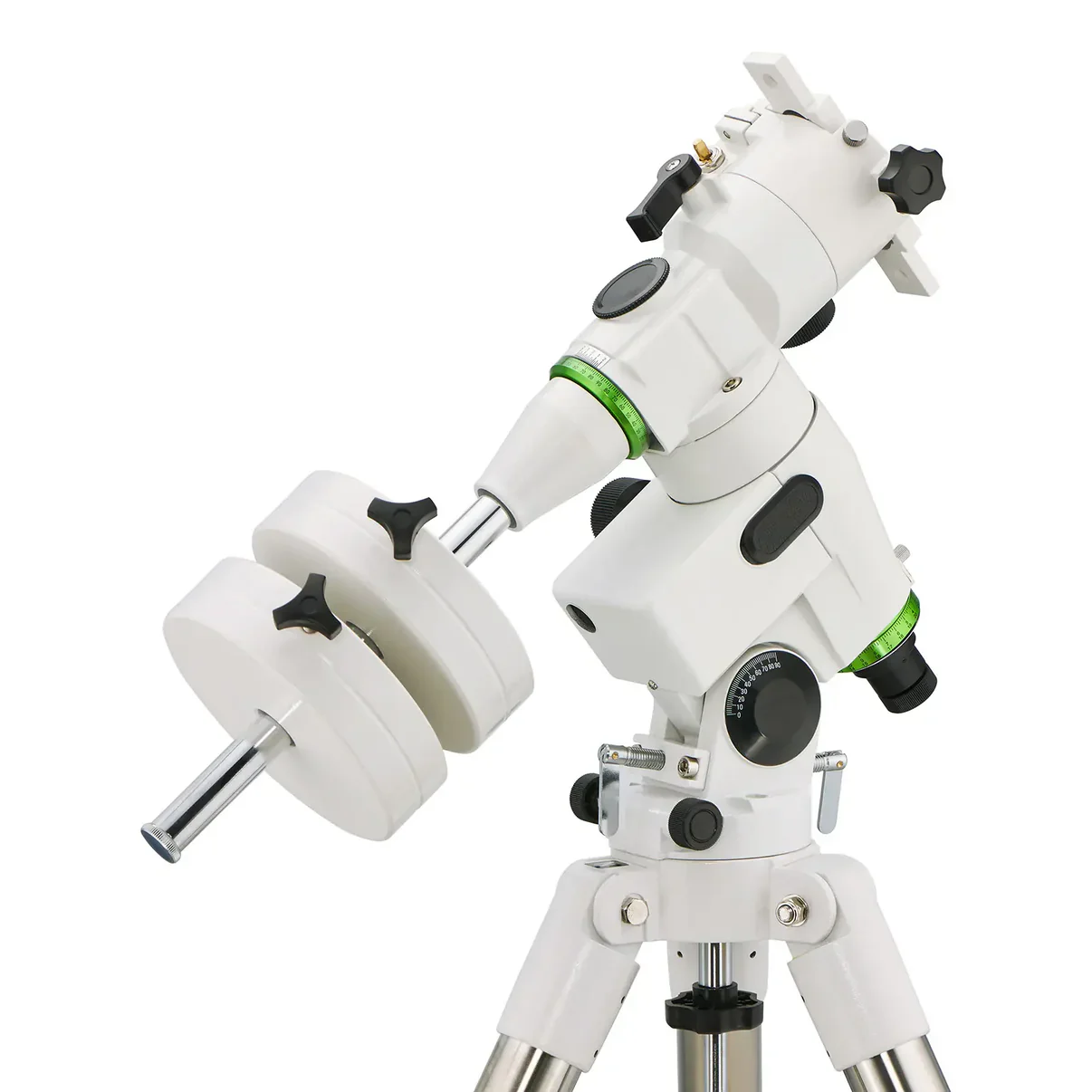

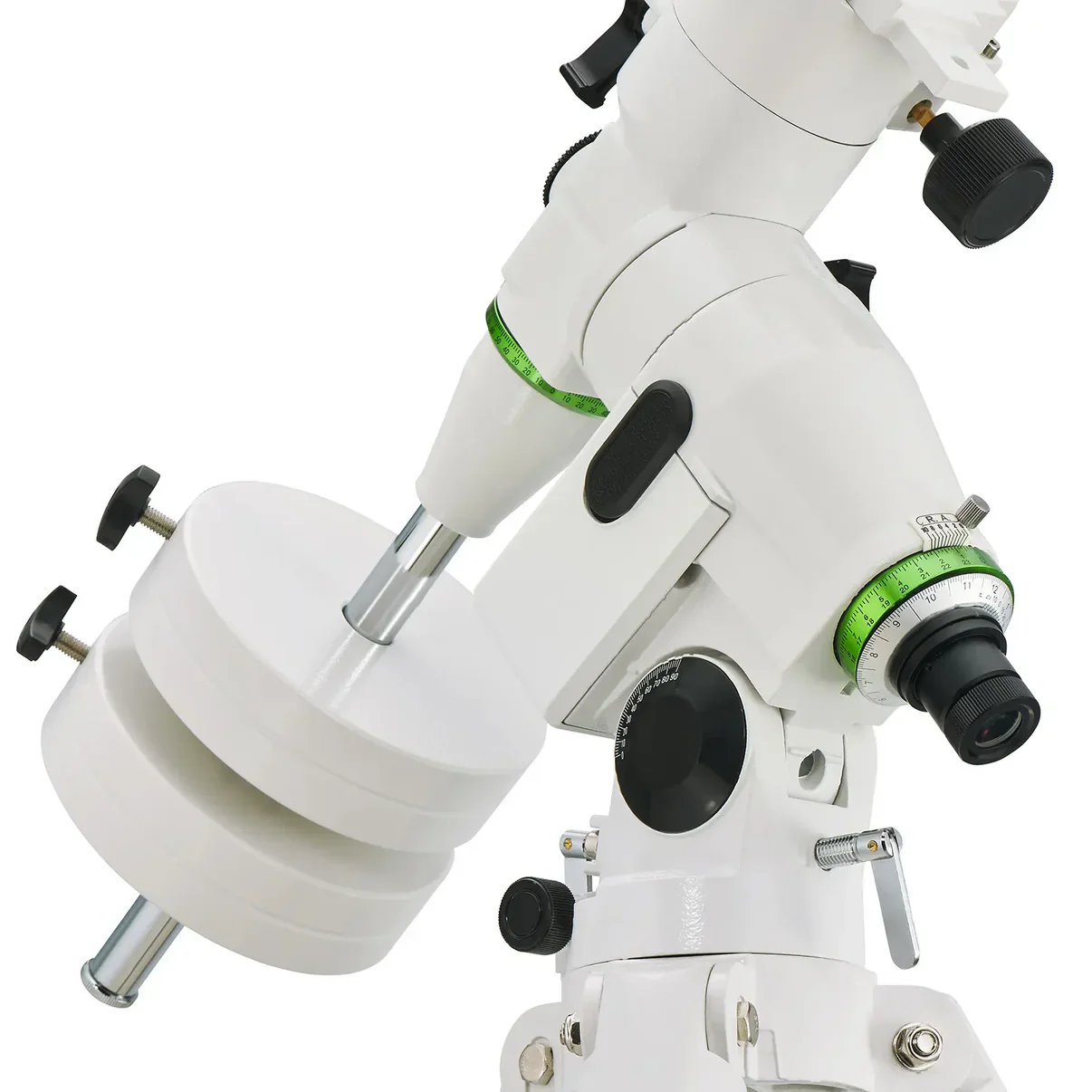

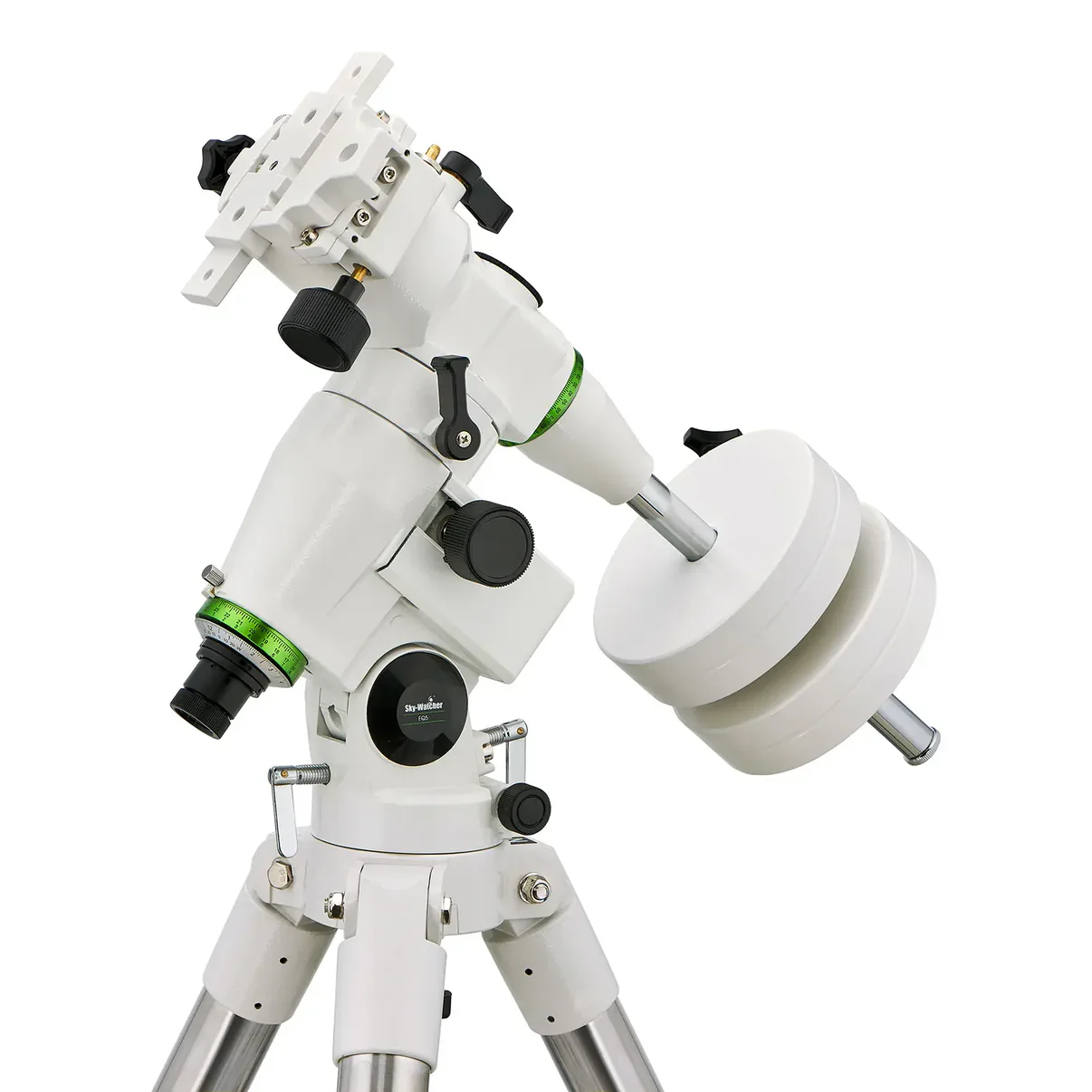

Sky-Watcher EQ5 Heavy-Duty Equatorial Mount with Stainless Steel Tripod

Precision German Equatorial Mount for Visual Astronomy and Astrophotography

The Sky-Watcher EQ5 Heavy-Duty Equatorial Mount is a robust and precise German equatorial mount designed to provide the stability and accuracy required for serious visual astronomy and entry-level astrophotography. With a strong 9.1kg payload capacity, precision slow-motion controls, and upgrade capability for motor drives and Go-To functionality, the EQ5 offers exceptional versatility for astronomers looking to expand their observing and imaging capabilities.

Mounted on a rigid stainless steel tripod with accessory tray, the EQ5 delivers excellent vibration damping and long-term reliability, making it an ideal platform for medium-sized telescopes and imaging setups.

---

Key Features

• Heavy-duty German equatorial mount for precise astronomical tracking

• 9.1kg payload capacity suitable for medium-sized telescopes

• Precision slow-motion controls on both RA and Dec axes

• Supplied with two 5.1kg counterweights for proper balance

• Built-in bubble level for accurate setup

• Latitude and azimuth adjustment controls for precise polar alignment

• Engraved aluminium setting circles for manual object location

• Upgradeable with optional motor drives and Go-To systems

• Heavy-duty stainless steel tripod with accessory tray

• Ideal for visual observation and entry-level astrophotography

---

Accurate Tracking with German Equatorial Design

The EQ5 uses a precision-engineered German equatorial mount design, allowing accurate tracking of celestial objects by aligning the mount with Earth’s rotational axis. This enables smooth tracking using the slow-motion controls or optional motor drives.

This makes the EQ5 ideal for observing and tracking:

• Planets and the Moon

• Deep sky objects such as nebulae and galaxies

• Star clusters and double stars

The equatorial design also provides the foundation needed for long-exposure astrophotography.

---

Heavy-Duty Construction for Stability and Reliability

The mount is built for strength and durability, featuring precision-machined components and a heavy-duty stainless steel tripod.

Stability features include:

• Rigid stainless steel tripod for reduced vibration

• Large accessory tray for improved structural support

• Dual counterweight system for precise balance

• Solid equatorial head construction

This ensures stable performance during high-magnification observation and imaging.

---

Precision Polar Alignment Controls

Accurate polar alignment is essential for proper tracking, and the EQ5 includes dedicated adjustment controls to simplify setup.

Polar alignment features include:

• Built-in polar scope holder (optional polar scope available)

• Micrometer latitude adjustment scale

• Azimuth alignment adjusters

• Integrated bubble level for accurate positioning

These features allow precise alignment for improved tracking accuracy.

---

Upgradeable for Motorised Tracking and Go-To Control

The EQ5 is fully upgradeable, allowing users to enhance its capabilities over time.

Upgrade options include:

• Single-axis motor drive for automatic RA tracking

• Dual-axis motor drive for full tracking control

• Full Go-To upgrade for automated object location and tracking

With motor upgrades installed, the EQ5 becomes a capable platform for astrophotography.

---

Ideal For

• Medium-sized refractor and reflector telescopes

• Visual astronomy observation

• Entry-level astrophotography

• Deep sky and planetary observation

• Astronomy beginners and intermediate users

• Users planning future Go-To upgrades

---

Technical Specifications

Specification	Details
Mount Type	German Equatorial Mount
Payload Capacity	9.1kg
Slow Motion Controls	Yes (RA and Dec)
Counterweights	2 × 5.1kg
Polar Scope Compatibility	Yes (optional)
Tripod	Stainless steel with accessory tray
Motor Drive Compatibility	Yes (optional single or dual axis)
Go-To Upgrade	Optional
Shipping Weight	25kg
Shipping Dimensions	106 × 49 × 26cm

---

What’s Included

• Sky-Watcher EQ5 Equatorial Mount Head

• Stainless steel tripod

• Accessory tray

• 2 × 5.1kg counterweights

• Counterweight shaft

---

Why Choose the Sky-Watcher EQ5 Equatorial Mount?

The Sky-Watcher EQ5 is a proven, reliable equatorial mount offering excellent stability, precise tracking, and upgrade flexibility. Its heavy-duty construction and upgrade capability make it ideal for astronomers who want a mount that can grow with their needs.

Whether you're focused on visual observation or planning to explore astrophotography, the EQ5 provides a solid and dependable foundation for your astronomy setup.
