Atomos Shinobi GO

Ultra-Bright. Ultra-Portable. Built for Creators.

The Atomos Shinobi GO is a 5.2-inch HDMI camera monitor designed for filmmakers, photographers, and content creators who need professional monitoring in a compact, daylight-viewable format. With 1500nits brightness, advanced HDR support, and precision monitoring tools like waveform, vectorscope, and 3D LUTs, Shinobi GO delivers stunning real-time visuals even in direct sunlight.

Its lightweight, low-profile design is perfect for run-and-gun setups, mobile rigs, and gimbal use, while USB-C PD power and NP-F battery support offer versatile power options for long shooting days. Whether you’re framing for cinematic production or social content, Shinobi GO keeps your creative vision in focus.

Key Features:

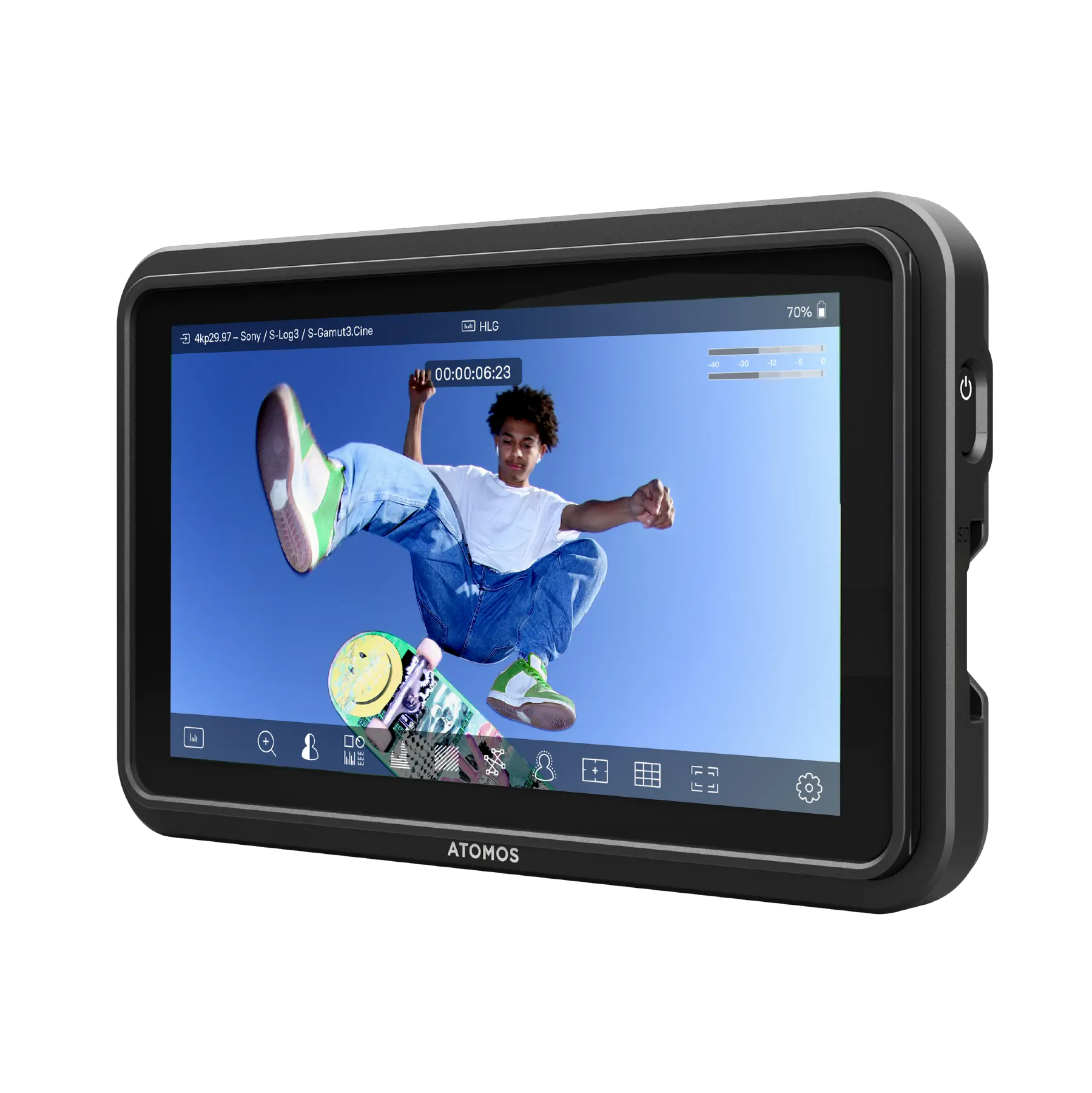

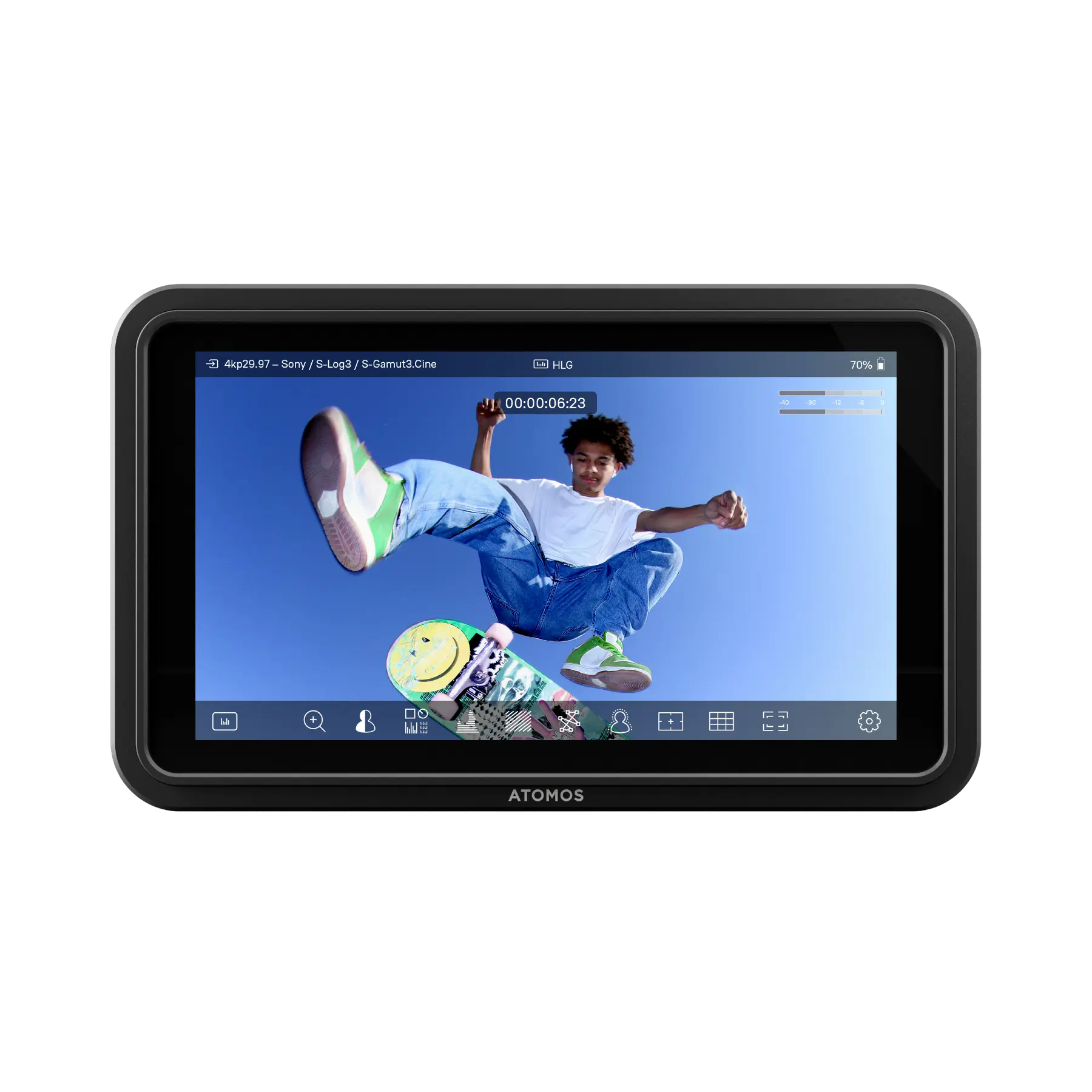

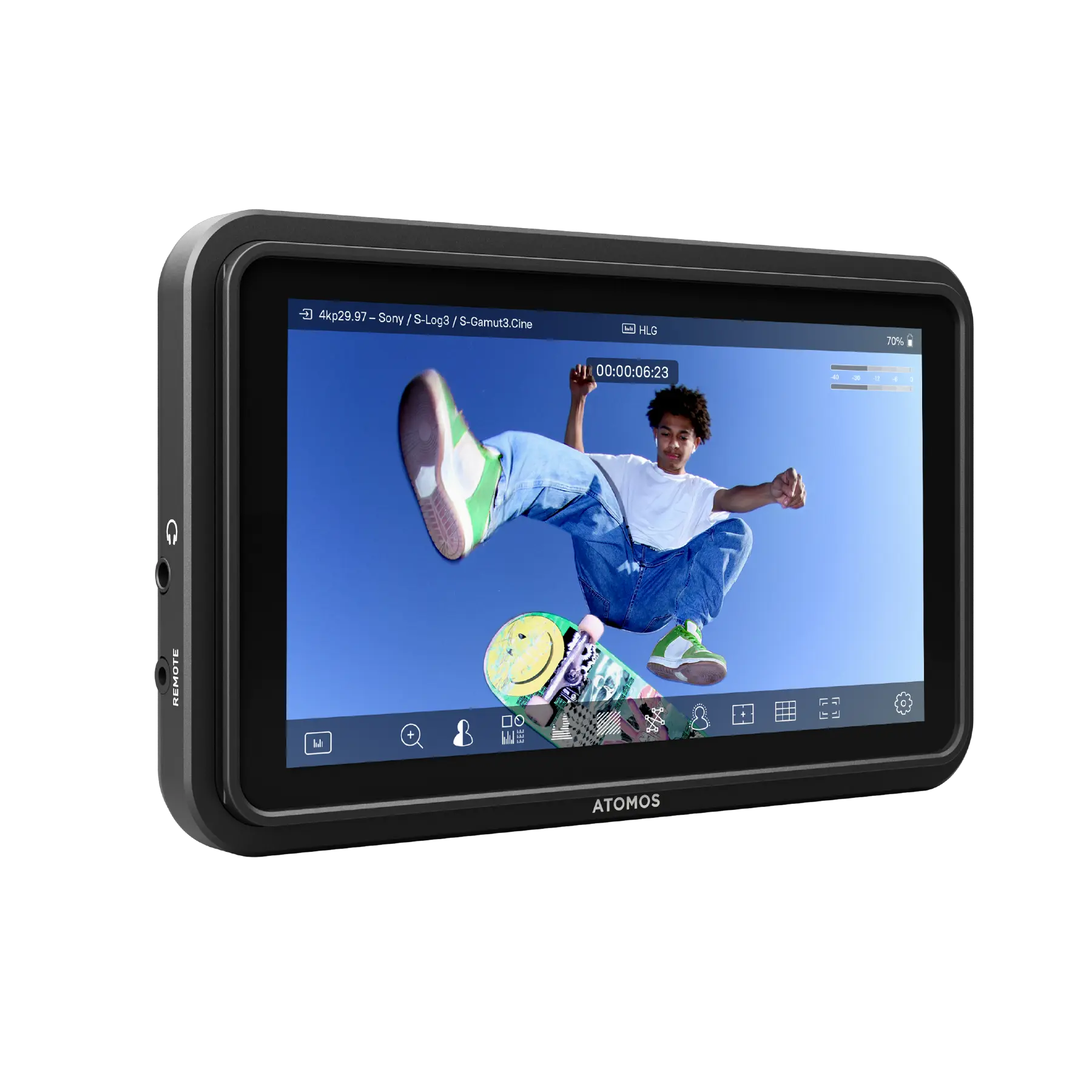

• 5.2" SuperAtom IPS Touchscreen – Full HD (1920 x 1080) with 1500nits brightness for outdoor visibility

• Ultra-Light & Slim – Just 210g and 20.8mm thick (28.5mm with cable lock), ideal for compact rigs

• USB-C PD Power – Power the monitor and charge your camera via USB-C

• 4K HDMI Input – Monitor 4K UHD signals up to 30p, with support for HDR (HLG & PQ)

• Professional Monitoring Tools – Waveform, RGB parade, vectorscope, histogram, focus peaking, zebras, false colour, and more

• HDR & Log Support – Built-in AtomHDR engine with 10-stop dynamic range and support for popular camera gammas and gamuts

• 3D LUT Support – Load and store up to 8 custom .cube LUTs directly to the device

• Frame Guides for Cinematic & Social Content – Presets for 2.35:1, 1.85:1, 9:16, 4:5, 1:1 and more

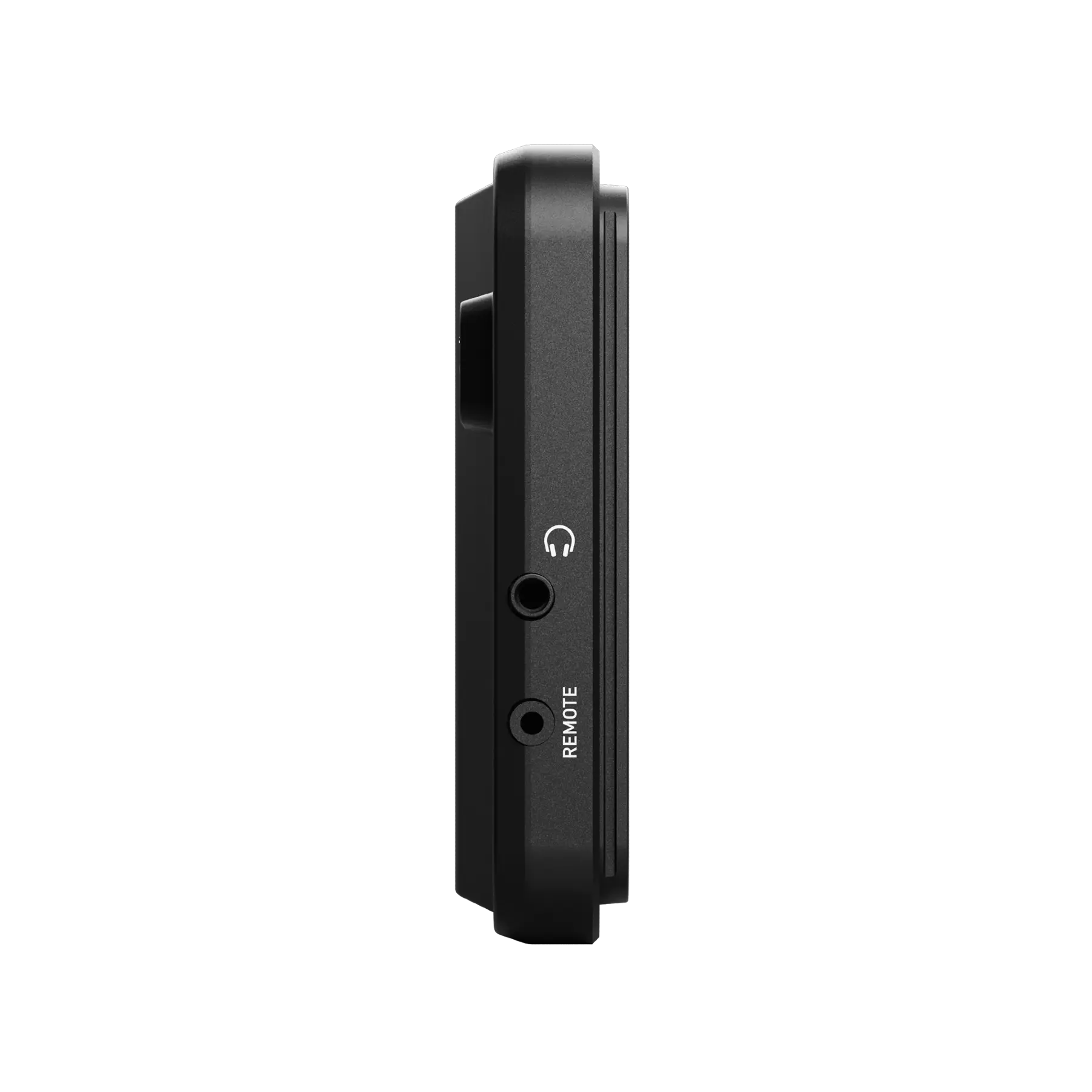

• Audio Monitoring – Embedded HDMI audio plus headphone output

• Tool-Free Mounting – ¼"-20 thread with anti-rotation holes for secure rigging

Display & Monitoring:

• Resolution: 1920 × 1080

• Size: 5.2"

• Brightness: 1500 cd/m² (nits)

• Aspect Ratio: 16:9

• Viewing Angle: 178°

• Bit Depth: 10-bit (8+2 FRC)

• Touchscreen: Capacitive

• 3D LUTs: .cube format (17 & 33 points), with 50/50 split preview

• Monitoring Modes: SDR Native, HDR HLG, HDR PQ, User LUT, 709 LUT

• Guides & Tools: Cine and social media frame guides, safe zones, focus peaking, zebras, false colour, blue-only, grid markers, zoom (1x, 2x, 4x)

Input & Output:

• HDMI Input: 1 x HDMI 1.4 (up to 4K UHD 30p)

• Audio: 2-channel HDMI embedded audio + 3.5mm headphone jack

• USB-C: Power input and optional camera charging

• SD Card Slot: For firmware updates and LUT upload

Supported Video Formats:

• 4K UHD: 23.98/24/25/29.97/30

• Full HD (Progressive): 23.98–60p

• Full HD (Interlaced): 50i / 60i

• 720p: 50 / 59.94 / 60

---

Build & Power:

• Material: ABS Polycarbonate body

• Cooling: Passive heat sink (fanless operation)

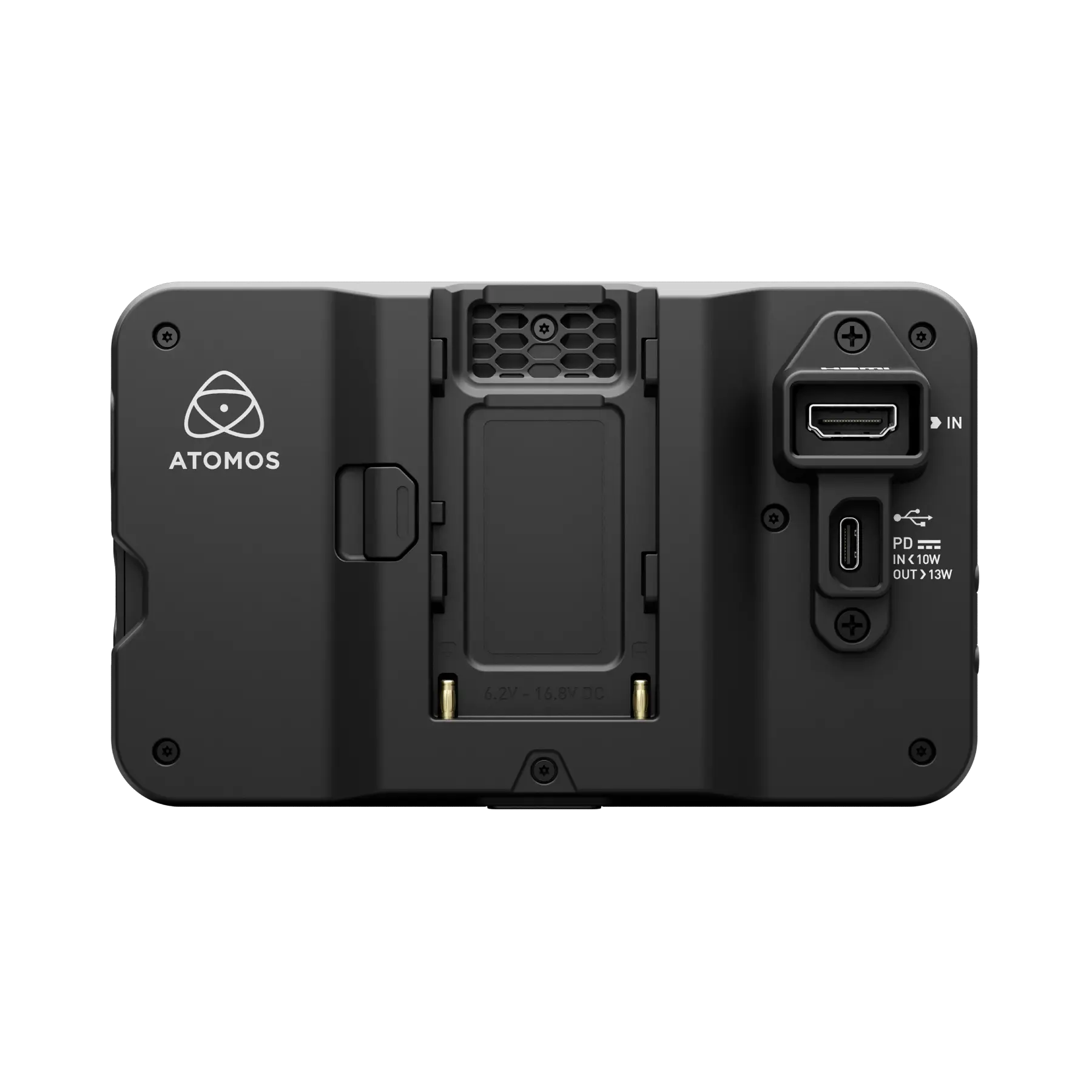

• Battery Support: 1 x Sony NP-F / L-Series

• Power Options: USB-C PD or optional DC/D-Tap via eliminator cable

• Mounting Point: 1 x ¼"-20 thread (with anti-rotation slots)

---

Dimensions & Weight:

• Dimensions: 151 x 91.5 x 20.8 mm (28.5 mm with locking cable adaptor)

• Weight: 210g (7.4oz)

---

What's in the Box:

• Atomos Shinobi GO Monitor

• USB-C 2.0 Cable

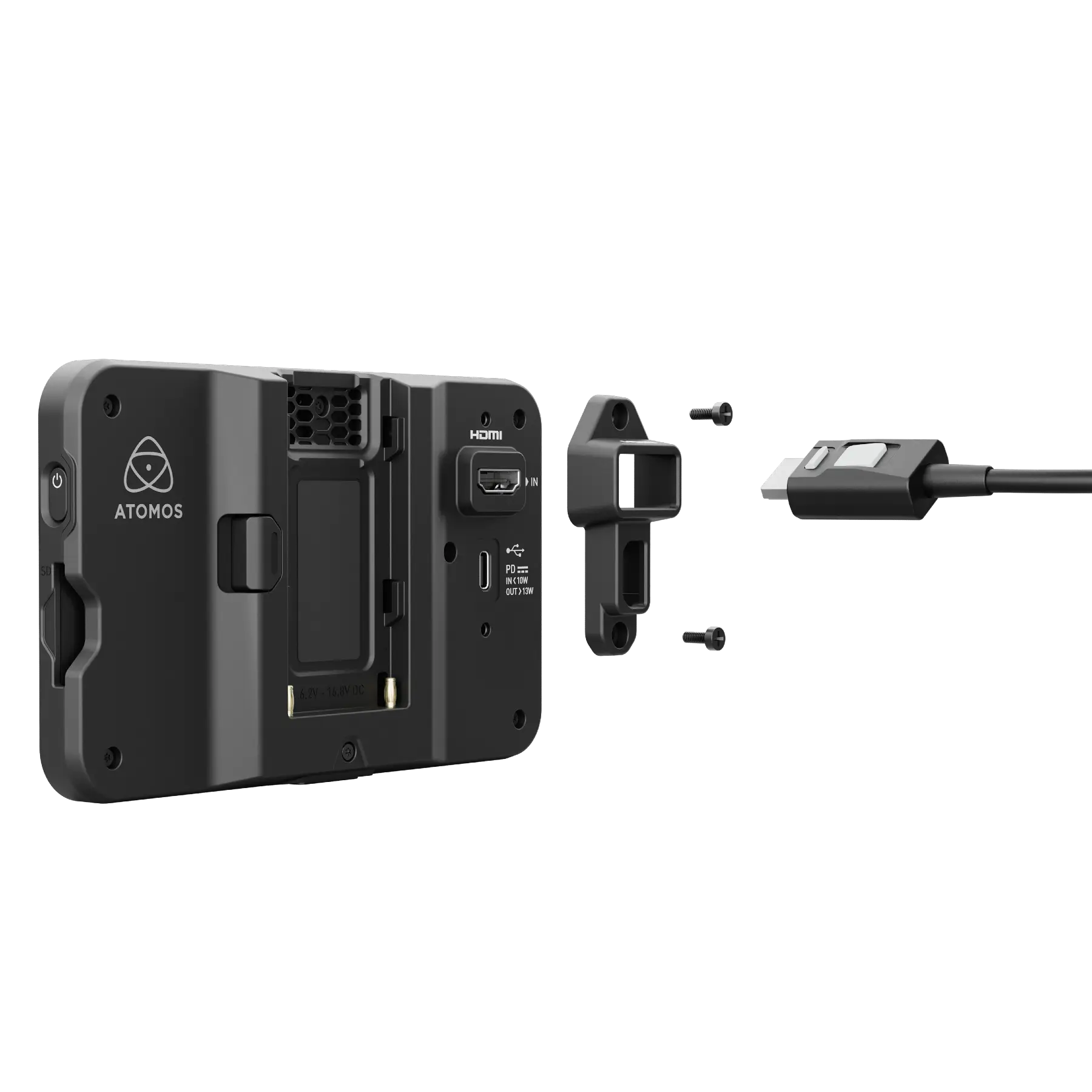

• HDMI & USB-C Locking Cable Adapter

• Quick Start Guide

---

Optional Accessories:

• Quick Release Monitor Mount

• NP-F Battery Eliminator

• DC to D-Tap Cable

• Power Kit

• HDMI Cables

• USB-C to Serial Cable

---

Warranty:

• Standard: 1 Year

• Extended: 2 Years upon product registration

---

Powerful, portable, and production-ready — the Atomos Shinobi GO is the perfect field companion for creators who demand clarity, control, and reliability in any shooting condition.
